AWS Class ER316LMN Welding Wire Stockist Manufacturer and Supplier in Jakarta, Indonesia
Home > Coated Electrodes > AWS Class ER316LMN Welding Wire
Ragnar Welding Supplies, a well-respected manufacturer and supplier located in Jakarta, Indonesia, provides top-notch AWS Class ER316LMN welding wire tailored for critical industrial needs. This cutting-edge austenitic stainless steel filler metal is designed to offer outstanding corrosion resistance, strength, and weld quality. With its low carbon content, along with enhancements of molybdenum and nitrogen, it excels in resisting pitting and crevice corrosion. Ragnar Welding Supplies guarantees that each batch adheres to international standards through meticulous alloy control and state-of-the-art production techniques. The company caters to the petrochemical, marine, food processing, and power generation sectors both in Indonesia and around the globe, delivering dependable welding solutions.
ER316LMN Welding Wire Supplier in Jakarta, OK AUTROD 316LMN ER316LMN Welding Wires in Bekasi, UGIWELD 4455 Filler Metal Wire in Surabaya, SFA 5.9 AWS Class ER316LMN Welding Filler Wire in Indonesia, W. no. 1.4455 Welding Wires in Bekasi, UNSS31682 Welding Filler Wire in Bandung, AWS A 5.9 ER316LMN Welding Wire in Surabaya, AWS Class ER316LMN MIG Spools in Jakarta, AWS/ASME 5.9 AWS Class ER316LMN Welding Wire Indonesia.
AWS Class ER316LMN Welding Wire Specification
| Classification | AWS 5.9, ER316LMN |

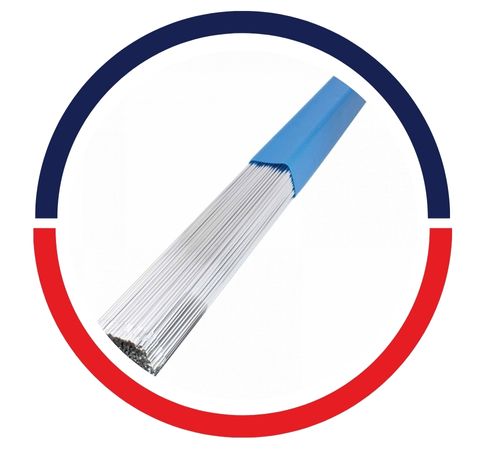

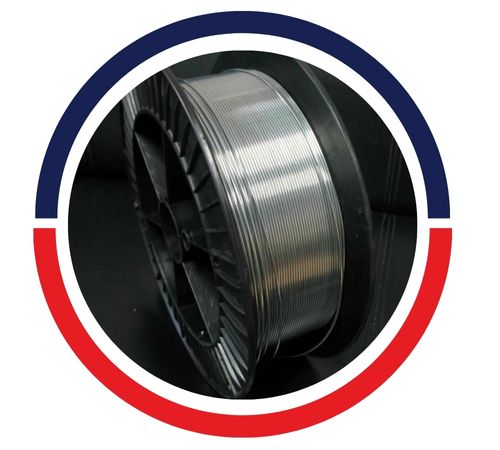

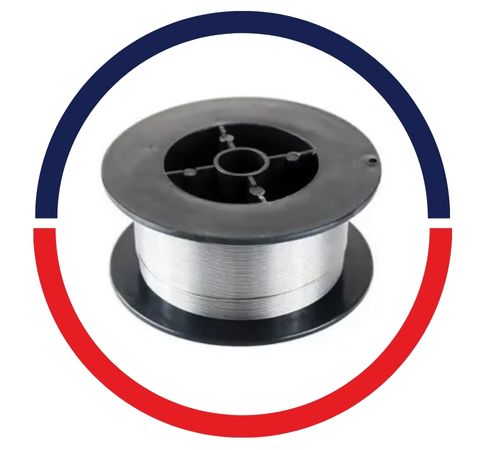

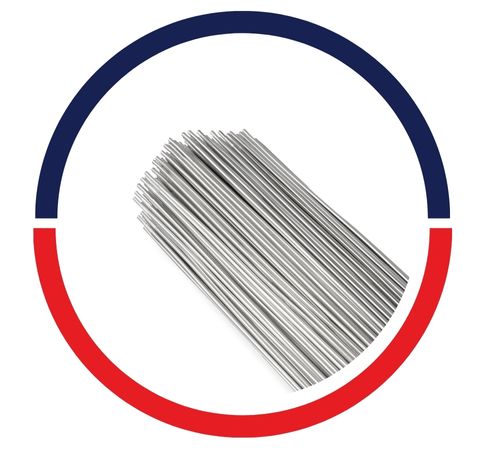

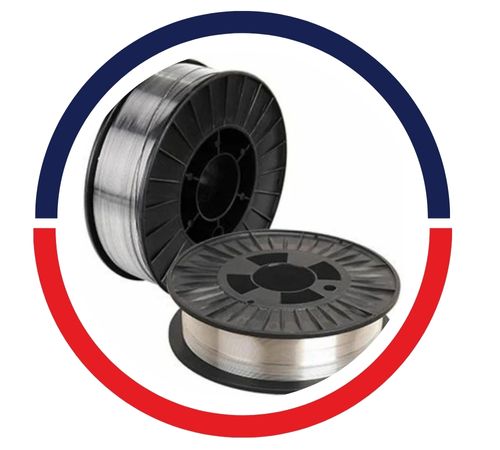

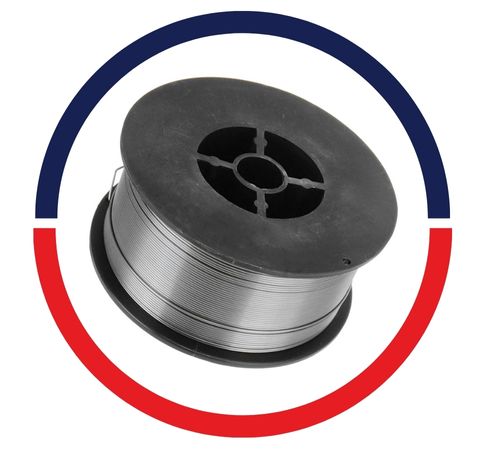

| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Size | 0.76 mm ∞ *4.70xmm |
| ER316LMN Welding Wire Application & uses |
|
What is AWS Class ER316LMN Welding Wire?
This wire is a corrosion resistant and non-magnetic. It is a chromium, nickel, molybdenum solid wire for welding stabilized and unstabilized austenitic alloys of the same type and non-magnetic steels. This OK Autrod 316LMn alloy is also used in combination with OK Flux 10.93 and OK Flux 10.99. The alloy is corrosion resistant in seawater environments at temperatures below 350 °C and has very good corrosion resistance to acids such as nitric acid. This alloy exhibits excellent impact properties, which can be achieved at low temperatures.
AWS Class ER316LMN Welding Wire Chemical Composition
| C | Cr | Mn | Mo | N | Ni | Si |
| 0.01 % | 19.9 % | 6.9 % | 3.0 % | 0.18 % | 15.9 % | 0.4 % |
UGIWELD 4455 MIG & TIG Filler Metal in Indonesia, AWS Class ER316LMN TIG Cut Lengths in Jakarta, AWS Class ER316LMN Welding Wire Exporters in Bekasi, AWS 5.9 AWS Class ER316LMN Welding Wire Reels in Surabaya, ER316LMN Welding Wire Coils in Bekasi, OK AUTROD 316LMN MIG & TIG Filler Metal in Bandung, W. No. 1.4455 Filler Wire in Surabaya, AWS Class ER316LMN Welding Wire Stockist in Jakarta, AWS Class ER316LMN Welding Wire Stockist in Indonesia.
Available Product Forms and Sizes AWS Class ER316LMN Welding Wire
| Diameter in | 0.030 | 0.031 | 0.035 | 0.039 | 0.045 | 0.047 | 0.062 | 0.078 | 0.093 | *0.125 | *0.156x | 0.187x |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter mm | 0.76 | 0.80 | 0.89 | 1.00 | 1.10 | 1.20 | 1.60 | 2.00 | 2.40 | *3.20 | *4.00x | *4.70x |
AWS Class ER316LMN welding wire consists of about 18% chromium, 13% nickel, and 2.5–3% molybdenum, along with a carefully controlled amount of nitrogen and low carbon content (≤0.03%). This well-balanced composition enhances resistance to intergranular and pitting corrosion, particularly in environments rich in chlorides. The wire boasts a tensile strength ranging from 550–700 MPa, a yield strength of approximately 350–400 MPa, and an elongation of 35–40%. The addition of nitrogen boosts mechanical strength and structural stability, ensuring excellent weld toughness, ductility, and corrosion resistance, whether in normal or elevated temperature conditions.
ISO Certified
Largest Inventory
On Time Deliveries
Customer Support
Types of AWS Class ER316LMN Welding Wire
ER316LMN Welding Wire Supplier in Jakarta, OK AUTROD 316LMN ER316LMN Welding Wires in Bekasi, UGIWELD 4455 Filler Metal Wire in Surabaya, SFA 5.9 AWS Class ER316LMN Welding Filler Wire in Indonesia, W. no. 1.4455 Welding Wires in Bekasi, UNSS31682 Welding Filler Wire in Bandung, AWS A 5.9 ER316LMN Welding Wire in Surabaya, AWS Class ER316LMN MIG Spools in Jakarta, AWS/ASME 5.9 AWS Class ER316LMN Welding Wire Indonesia.
AWS Class ER316LMN Welding Wire Uses
AWS Class ER316LMN welding wire is commonly utilized for welding austenitic stainless steels like AISI 316, 316L, and 316LN in settings that demand high performance in both corrosion resistance and strength. It finds its place in various industries, including petrochemical, marine, food processing, pharmaceuticals, and power generation. Typical uses involve fabricating pressure vessels, heat exchangers, chemical tanks, pipelines, and desalination equipment. The nitrogen-enhanced composition significantly improves resistance to pitting and crevice corrosion, making it a reliable choice for demanding applications.
